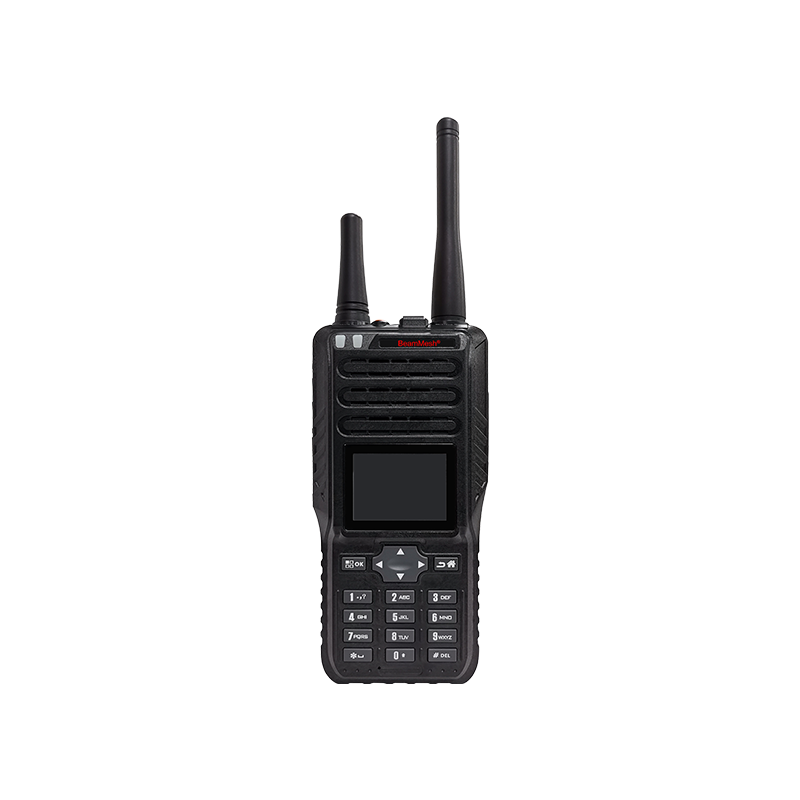

BEAMmesh Series MANET Broadband MESH Handheld

BEAMmesh Series MANET Broadband MESH Handheld
BEAMmesh Series MANET Broadband MESH Handheld

Großes Bild :  BEAMmesh Series MANET Broadband MESH Handheld

Produktdetails:
Herkunftsort: Guangdong, China
Markenname: WDS
Modellnummer: Strahl
Zahlung und Versand AGB:
Min Bestellmenge: 1 EINHEIT
Preis: $5150/unit
Verpackung Informationen: Kasten
Lieferzeit: 4-7 Monate
Zahlungsbedingungen: T/T
Kontakt

BEAMmesh Series MANET Broadband MESH Handheld

Beschreibung
Typ: Handheld Bildschirmparameter: 1,8'', TFT-LCD (320×240)
Haupt- und Standby-Batterien: 7,2 ~ 8,4 V, 3000 mAh Erinnerung/Speicher: 2 GB RAM + 16 GB ROM, 128 GB Micro-SD
Arbeitsfrequenz: 520-650, 1200-1500 MHz Fördermaschinenbandbreite: 1,25/2,5/5/10/20 MHz-Einstellung
Hervorheben:

BEAMmesh handheld MANET broadband device

,

MESH wireless broadband handheld unit

,

MANET broadband MESH communication tool

Mesh Radio-MANET Broadband MESH Handheld
• Supports two-band selection in UHF/L Band/S Band/C Band, switching work
• 1T2R, 1W linear silicon-based gallium arsenide power amplifier, dual antenna diversity reception, -103dBm@5MHz high sensitivity.
City ground 1~5 km, open LOS 50~100 km
• Space-time coding, high-speed throughput above 56Mbps; Spatial multiplexing, the rate of more than three hops does not decline
• Classic SDR platform, software and hardware are independent and controllable
• HTDMA, large-scale networking of nodes above 256
• Heterogeneous intelligent channel selection networking, and dynamic adaptive frequency hopping strong anti-interference
• Support DES/AES and other software encryption, and TF card hardware encryption
• It is compatible with MIMOmesh/SMARTmesh/ULSC series
• PDT/DMR digital intercom, and 4G/5G routing, can be expanded
• Rugged, friendly to the touch, IP67 waterproof, military-grade harsh environment

BEAMmesh Series MANET Broadband MESH Handheld 0


MANET Broadband MESH Handheld Specifications
System Parameters
Application processor Octa-core A53 processor with maximum operating frequency of 1.8GHz
Operating system Android 6.0
Screen parameter 1.8'', TFT LCD(320 X 240)
Memory/storage 2GB RAM+16GB ROM, 128G Micro SD
Voice services Supports VoIP (PTT) and multi-party conferences
Data service Support file transfer, short message, GIS, iot data transmission, etc
Video service Video pull-up, video conferencing, and more are supported
Audio, video and data interfaces 20PIN LEMO IP/USB, 5PIN aviation head words, WiFi IP
Main and standby batteries 7.2~8.4V,6800mAh
Endurance time ≥6h (Transmit: Receive: idle = 1:1:1)
Locate the navigation Built-in GPS/BD
Size 15.5x6.6x3.2cm (Contains lithium battery, does not include antenna and back clip)
Weight 430g (Contains lithium battery, does not include antenna and back clip)
Environmental
Protection Level IEC60529-IP67(1.5m,0.5h)
Shock and vibration MIL-STD-810G
Operation Temperature -40ºC~+80ºC
Storage temperature -55ºC~+100ºC
Humidity requirement 10%~90%(No condensation)
Wireless communication
Communication format Mobile Ad-hoc NETworking Ad hoc network
Working frequency
(70M~6GHz, customized)		 350-450/450-550/570-700/800-950MHz,
1000-1200/1300-1500/1600-1800/1800-2000,1200-1700*MHz,
2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9,1.6-2.3/1.9-2.7*GHz,
4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*GHz
Transmission system TDD-COFDM
Receive sensitivity ≤-103dBm@5MHz
Transmit power 1W
Carrier bandwidth 1.25/2.5/5.0/10.0MHz Optional
Transmission capability 56Mbps@10MHz
Modulation Mode BPSK/QPSK/16QAM/64QAM/256QAM(Adaptive)
Network scale Same-frequency networking supports more than 256 nodes
Anti-jamming Mode Inter-frequency intelligent channel selection, full-band dynamic adaptive frequency hopping
Encryption DES56/AES128/AES256 Optional
Interface
Antenna Interface SMAx2
IP Interface Waterproof navigation plug (reusable with USB interface)
USB Interface Waterproof navigational plug (reusable with IP interface)
Headset interface Contact Wired Headset (PTT)
Basic peripheral Microphone (dual MIC), speaker
Front key Menu button, Home button, confirm button, back button, 4 way button, number button
Side key PTT button, Volume adjustment button, Power button (top), SOS button (top)
WiFi AP 2.4GHz/5.8GHz,802.11b/g/h

Standard Fittings:
BEAMmesh Series MANET Broadband MESH Handheld 1
Optional accessories:
BEAMmesh Series MANET Broadband MESH Handheld 2

Größe und Tag:

Maschenmodul,

COFDM-drahtloser Videoübermittler,

OfDM-Sender
